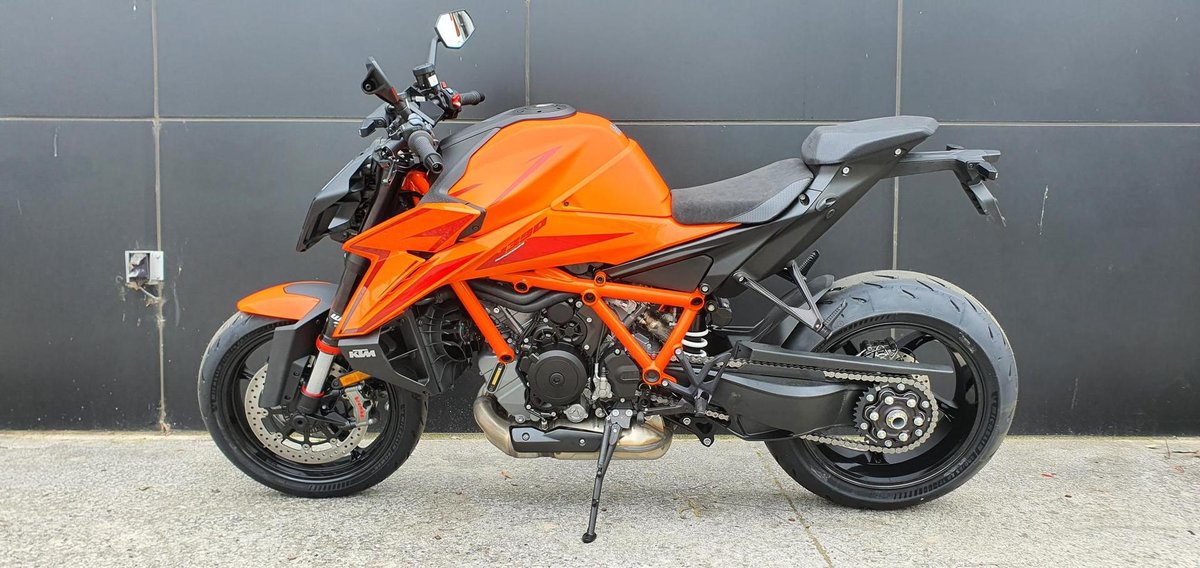

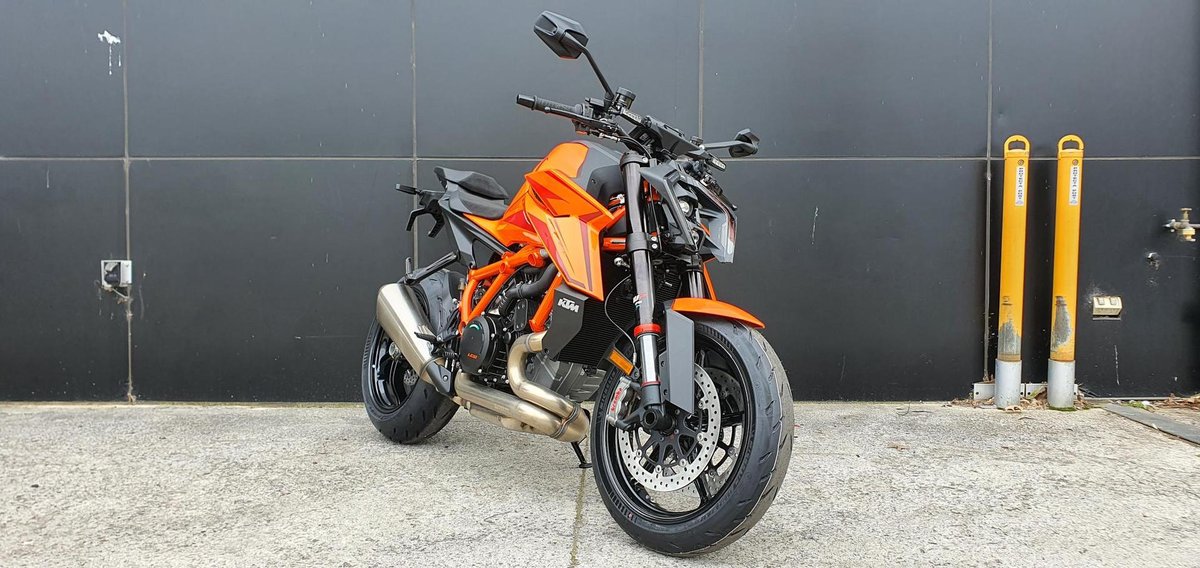

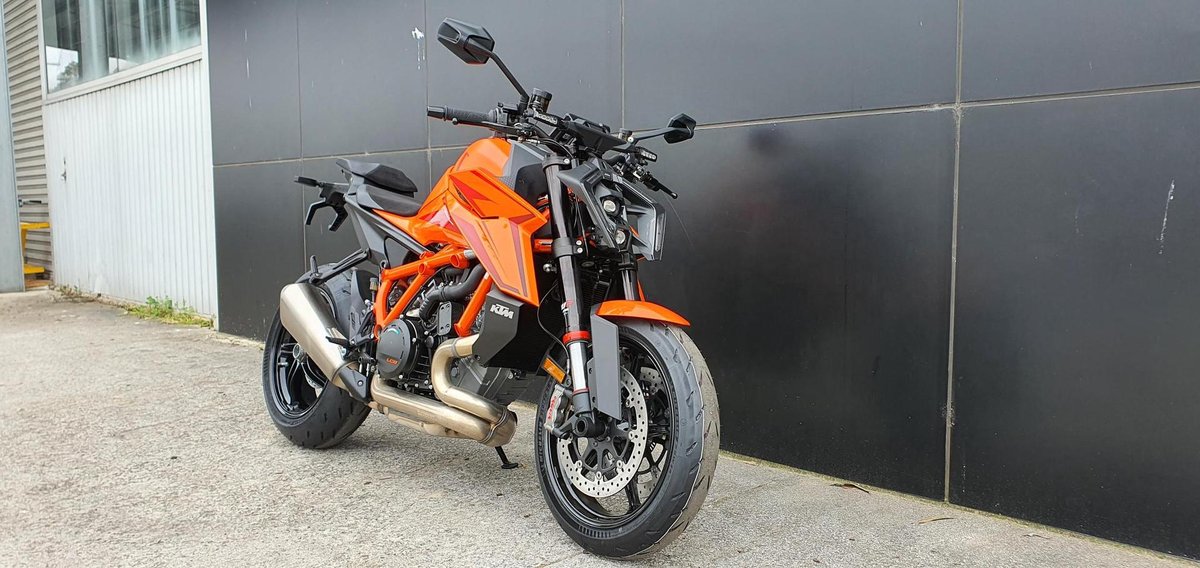

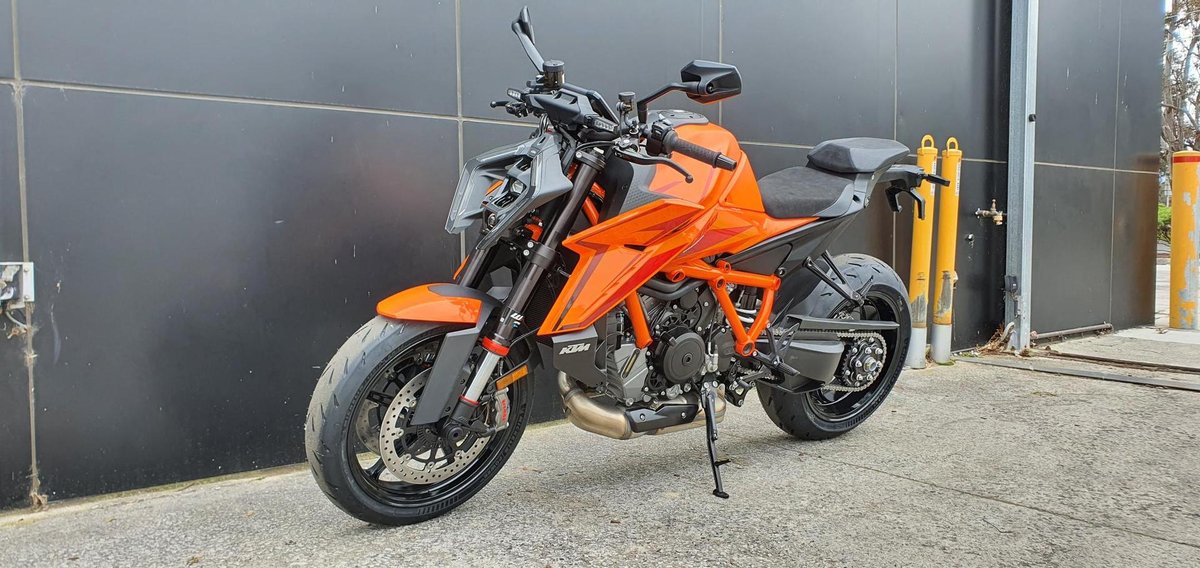

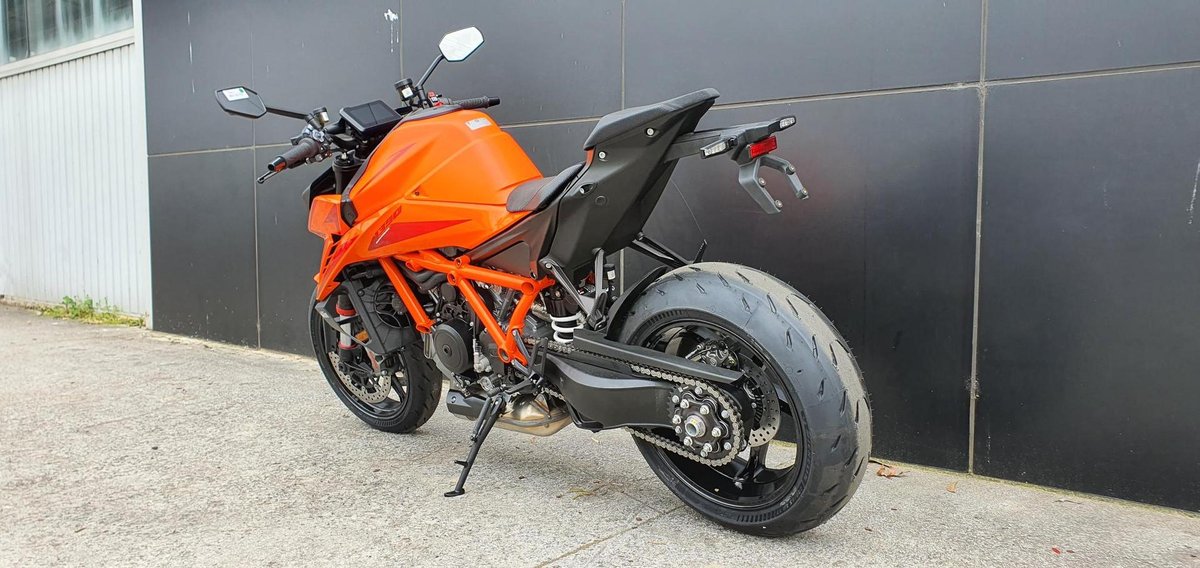

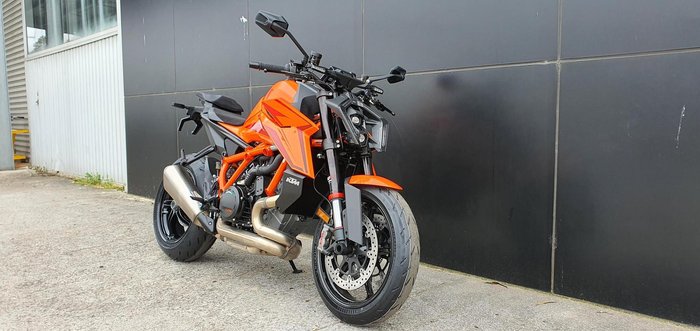

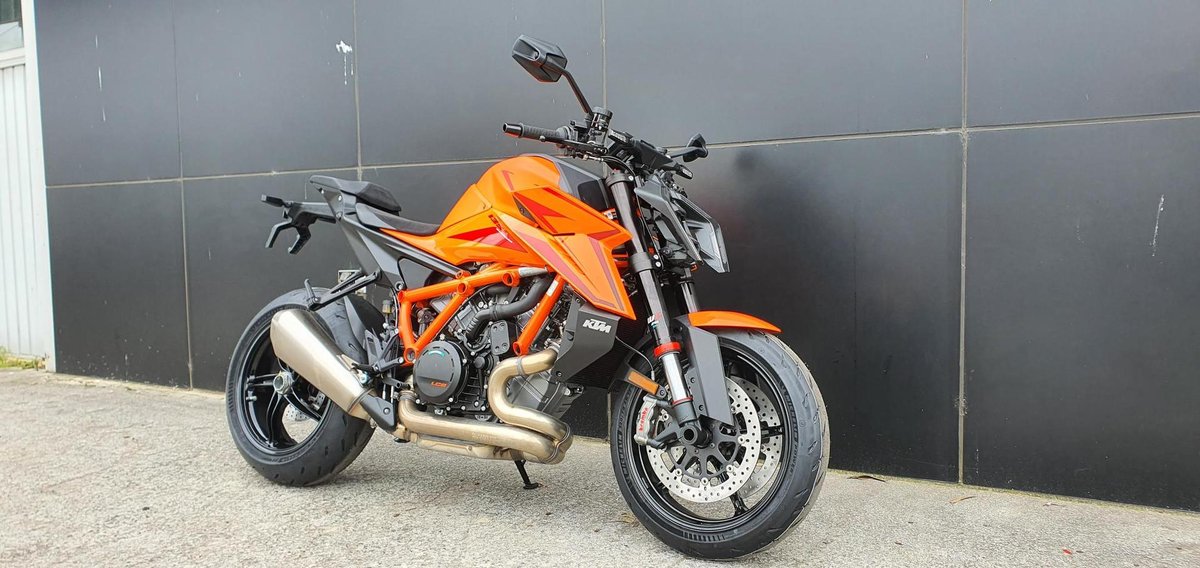

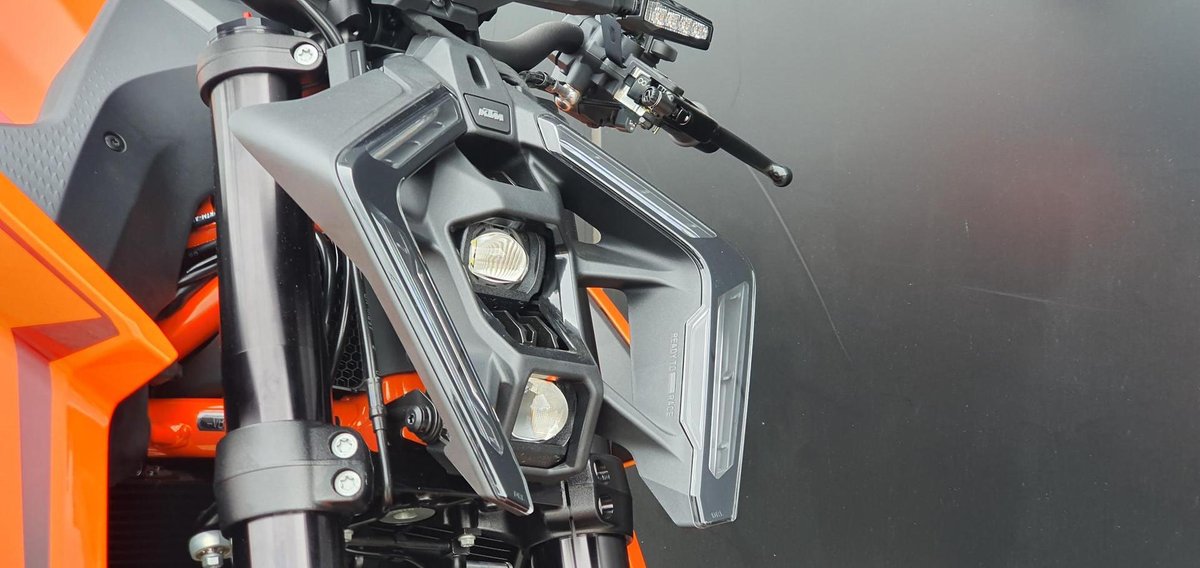

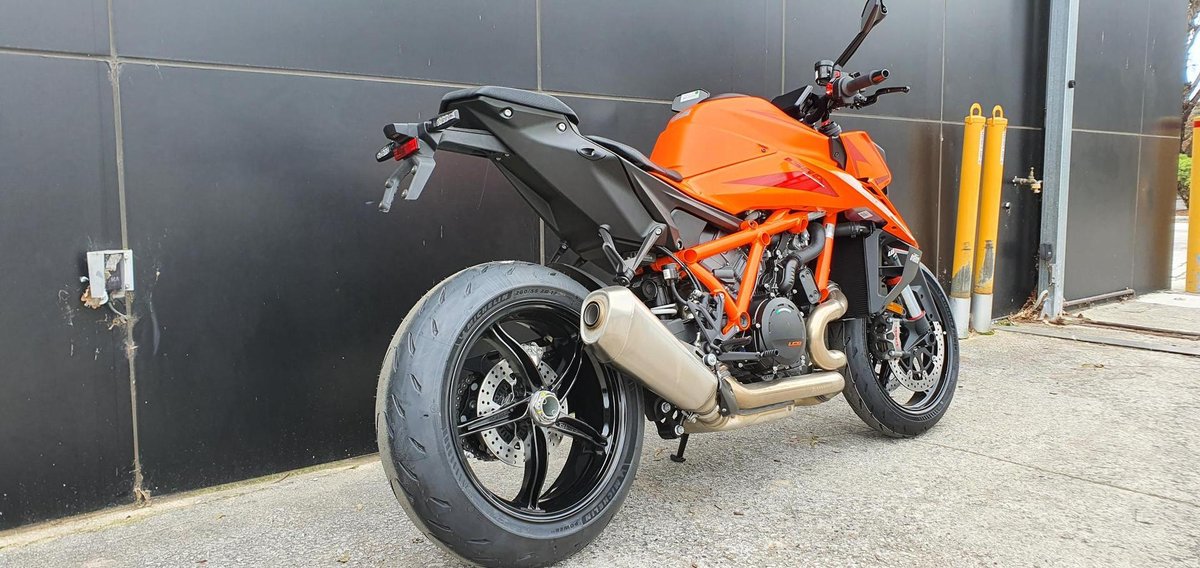

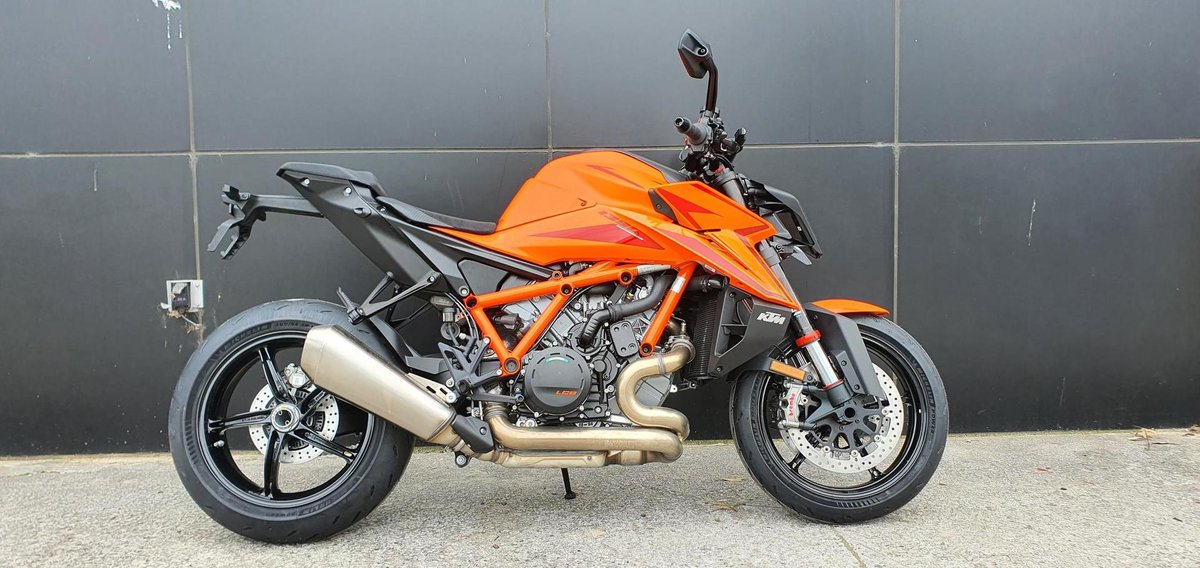

2025 KTM 1390 Super Duke R Super Duke

Features

• EngineSize: 1350
• EngineType: Piston

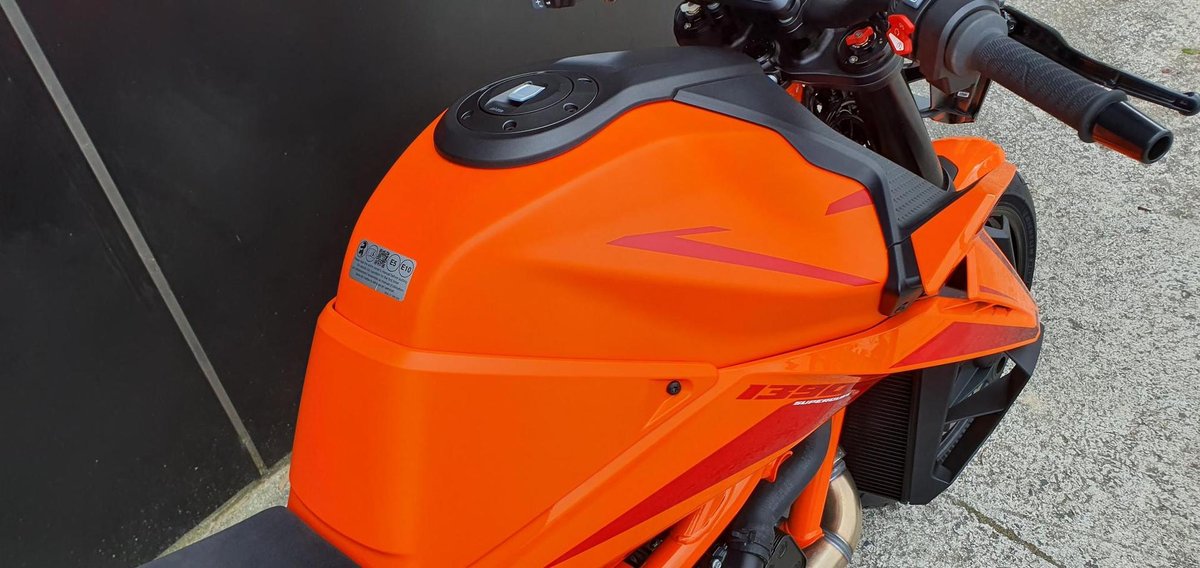

• FuelCapacity: 17.5
• FuelType: Petrol
• LAMS Approved: False
• Vehicle Class: Naked (751 - 10000cc)
• Engine Config: V-Twin
• Engine Stroke: 4
• Bore: 110.0mm
• Stroke: 71.0mm
• Cam Type: DOHC (Double Over Head Cam)
• Valves Per Cylinder: 4
• Compression Ratio: 13.2
• Induction System: Aspirated
• Carburettor: EFI - Electronic Fuel Injection; Keihin
• Number of Throttle Bodies: 2
• Throttle Bore: 60mm
• Cooling: Liquid
• Exhaust Description: Stainless steel; Catalytic converter in presilencer
• Maximum Power: 140.0kW
• Maximum Torque: 145Nm
• Starter: Electric
• Engine Voltage: 12Volt
• Charging Method: Alternator & Regulator-Rectifier
• Recommended RON: 95
• Gear Change Method: Left foot lever
• Clutch Type: Multi-disc; PASC anti-hopping (slipper); Hydraulic

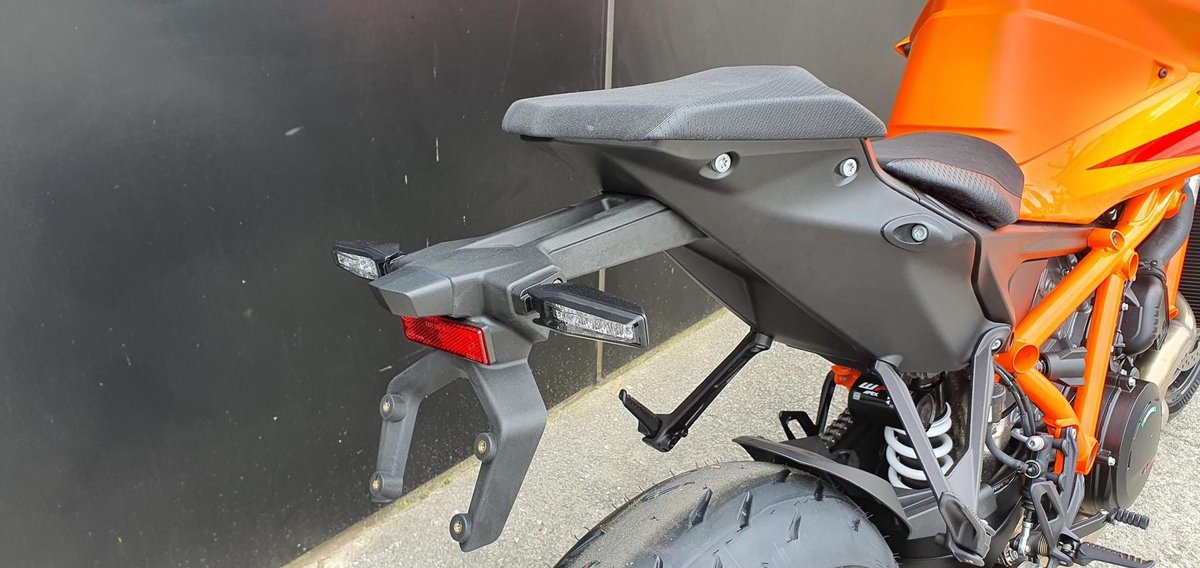

• Chassis Description: Subframe - Cast aluminium / Composite
• Frame Design: Trellis
• Side Stand: Standard

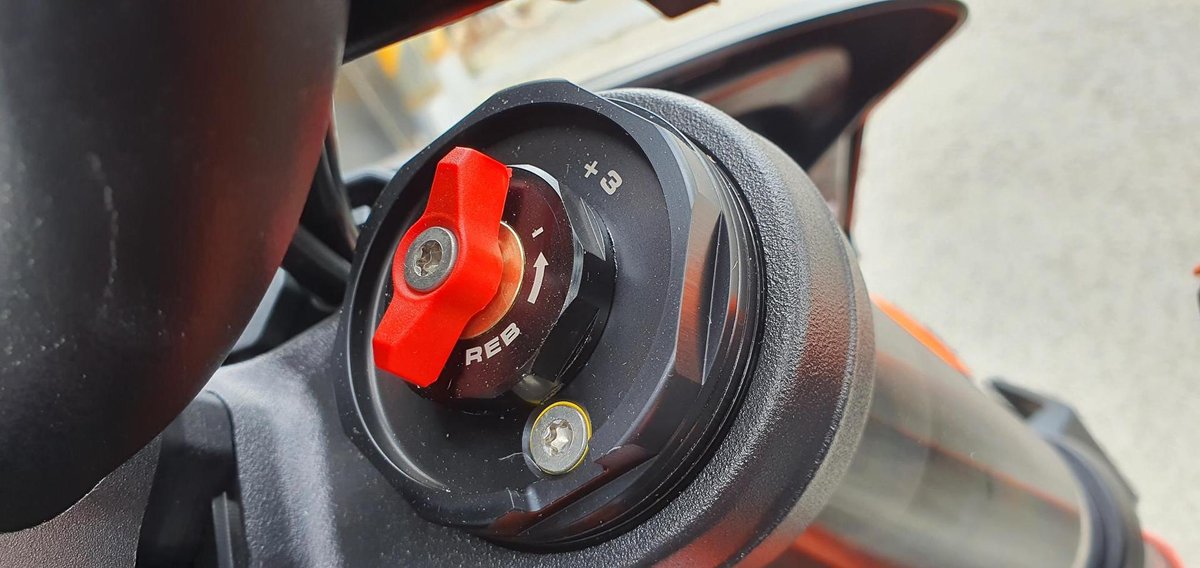

• Front Suspension: WP Apex open cartridge USD fork; Adjustable preload ,independent rebound & compression damping
• Front Suspension Travel: 125.0mm

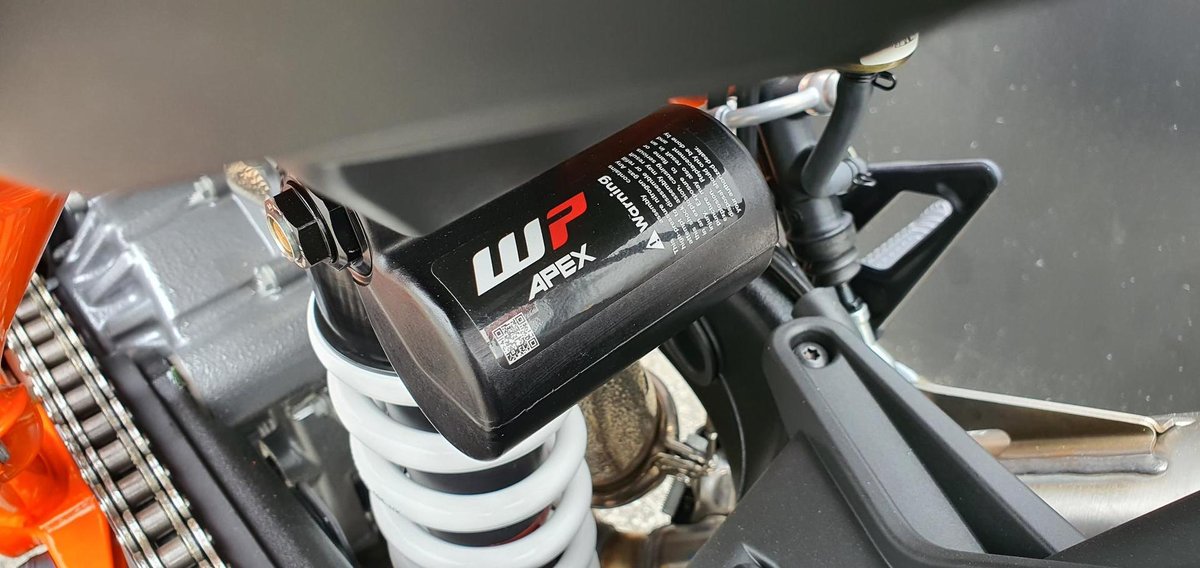

• Rear Suspension: Single WP Apex shock absorber; remote reservoir, Adjustable compression & rebound damping; Separate high & low sped compression damping settings; Hand adjustable spring preload
• Rear Suspension Travel: 140.0mm
• Swingarm Type: Single Sided

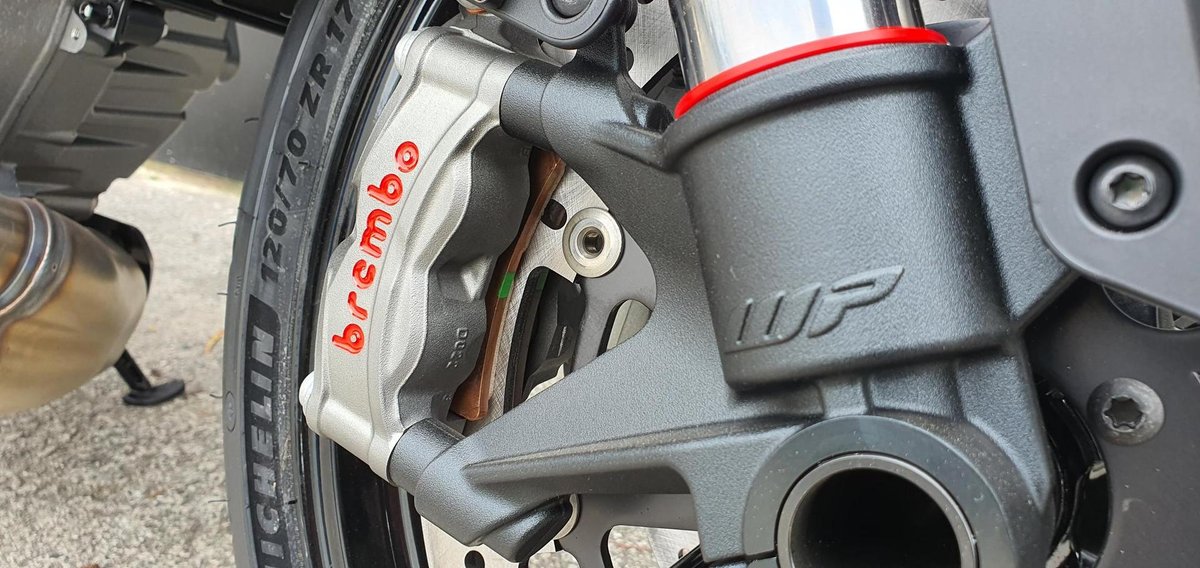

• Front Brake Description: Twin disc; Radial mounted Brembo Stylema Monobloc calipers; Hydraulic
• Front Brake Caliper(s): Four Piston
• Front Brake Diameter: 320.0mm
• Rear Brake Description: Single disc; Hydraulic
• Rear Brake Caliper(s): Double Piston
• Rear Brake Diameter: 240.0mm
• ABS: Standard
• Wheel Type: Black; Multi-spoke, Light alloy
• Wheel Size Front: 3.50x17"
• Wheel Size Rear: 6.00x17"
• Rear Tyre: 200/55-R17" Michelin Power GP
• Front Tyre: 120/70-R17" Michelin Power GP
• Wheelbase: 1491mm

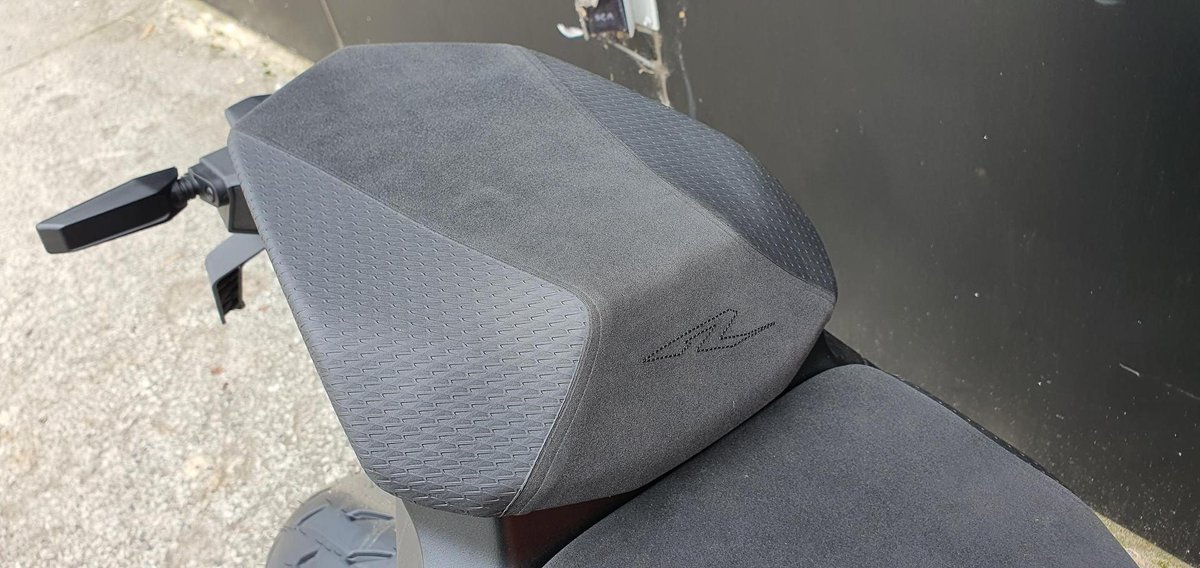

• Seat Height: 834mm
• Seating Capacity: 2
• Lock Type: Ignition/Steering

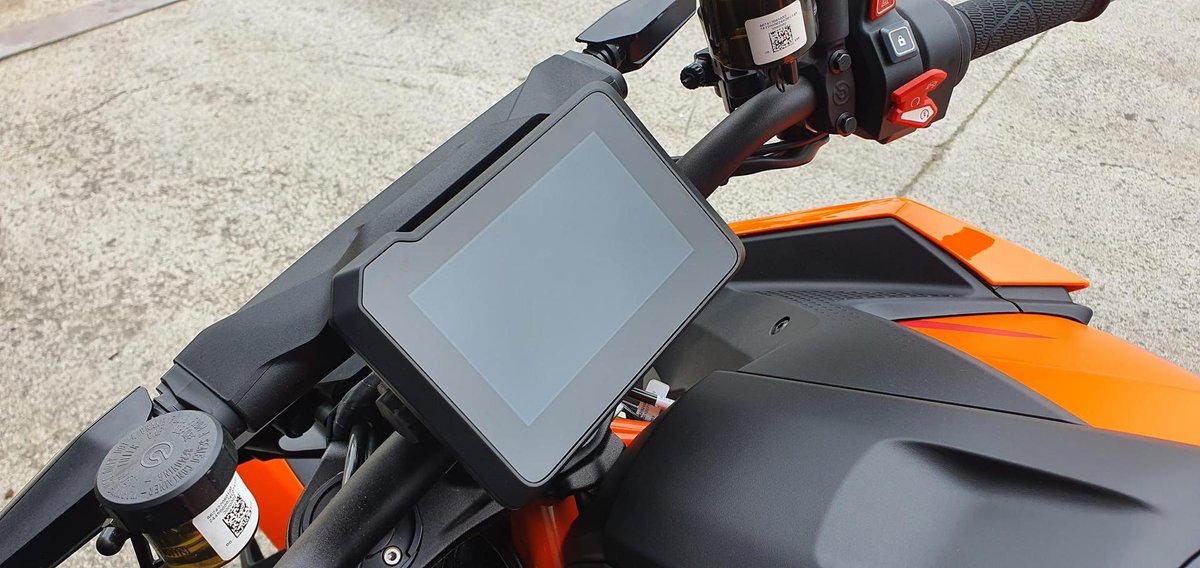

• Instruments / Dash Description: 5" TFT Colour display
• Windscreen: Not Available

_{Please confirm all features with dealer.}
